Big Tex Tandem Axle
$2,399.00
(423) 277-6159New Tazewell, TN

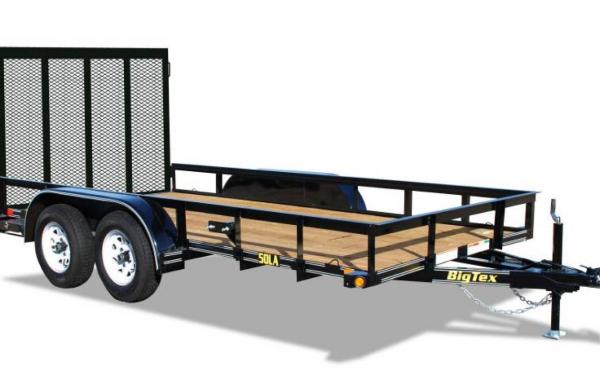

The 50LA Tandem Axle Angle Iron Utility Trailer from Big Tex comes in several lengths, providing versatility to fit almost any need. Be confident when hauling multiple 4-wheelers, side-by-sides, quads or small tractors. Opt for a ramp gate to further meet your towing needs.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
Big Tex Tandem Axle
Big Tex Tandem Axle
50LA-16BK4RG
Specs:
- G.V.W.R. 5,000#
- G.A.W.R. (Ea. Axle) 3,500#
- Coupler 2" A-Frame
- Safety Chains 1/4" Grd. 30 w/Safety Latch Hook (2 each)
- Jack 2K Top Wind (Bolted On)
- Tongue 4" Channel
- Top Rail 3" x 2" x 3/16" Angle
- Frame 3" x 2" x 3/16" Angle
- Crossmembers 3" x 2" x 3/16" Angle
- Uprights 14" Tall 2" x 2" x 1/8" Angle
- Fenders 9" x 72" Rolled Formed w/Back
- Axles Two 3,500# EZ Lube w/1 Elec. Brake
- Suspension Multi-Leaf Spring
- Tire ST205/75-15 Load Range C
- Wheel 15 x 5 White Spoke 5 Bolt
- Floor 2" Pine
- Lights D.O.T. Stop, Tail, Turn, & Clearance
- Elec. Plug 7-Way RV
- Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish
- Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
Standard Features:
- Safety Chains Attached w/Cold Rolled Eyelets
- Sand Foot on Jack
- Lower Jack Support Plate
- Floor Secured w/Torx Screws
- 4 Tie Down Loops
- Cambered EZ Lube Axles w/1 Electric Brake
- Complete Break-A-Way System w/Charger
- Grommet Mount Sealed LED Lighting
- Availability:
- In Stock
- Axle Config:
- Tandem Dual
- Max Payload:
- 3465 lbs.
- External Width:
- 77"
- External Length:
- 16'
- Hitch Type:
- Bumper Pull
- Category:
- Utility Trailers
- Year:
- 2018
- Condition:
- New
- Material:
- Steel
- Open/Enclosed:
- Open
- Color:
- Black
- GVWR:
- 5000
- Capacity:
- 3465
Features/Specifications
Features
| Axle | (2) 3,500# EZ Lube w/ (1) Elec. Brake |
|---|---|
| Jack | 2,000# Top Wind (Bolted On) |
| Tire | ST205/75R-15 Load Range C |
| Floor | 2" Treated Pine or Douglas Fir* |
| Frame | 3" x 2" x 3/16" Angle |
| Wheel | 15" x 5"; Black Spoke 5 on 5 Bolt Pattern |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Tongue | 4" Channel |
| Coupler | 2" A-Frame |
| Fenders | 9" x 72" Rolled Formed w/ Back |
| G.V.W.R. | 5,000# |
|---|---|
| Top Rail | 3" x 2" x 3/16" Angle |
| Uprights | 14" Tall 2" x 2" x 1/8" Angle |
| Elec. Plug | 7-Way RV |
| Hitch Type | Bumper Pull |
| Suspension | Multi-Leaf Spring w/ Equalizer |
| Crossmembers | 3" x 2" x 3/16" Angle |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional, Smooth Finish |
| Safety Chains | 1/4" Grd. 30 w/ Safety Latch Hook (2 ea) |
| G.A.W.R. (Ea. Axle) | 3,500# |
Specifications
Big Tex 50LA Tandem Axle Angle Iron Utility Trailer
| Model | Description |
|---|---|
| 50LA-10 | 77" x 10' Tandem Axle Angle Iron Utility Trailer |
| 50LA-12 | 77" x 12' Tandem Axle Angle Iron Utility Trailer |
| 50LA-14 | 77" x 14' Tandem Axle Angle Iron Utility Trailer |
| 50LA-16 | 77" x 16' Tandem Axle Angle Iron Utility Trailer |
| 50LA-18 | 77" x 18' Tandem Axle Angle Iron Utility Trailer |

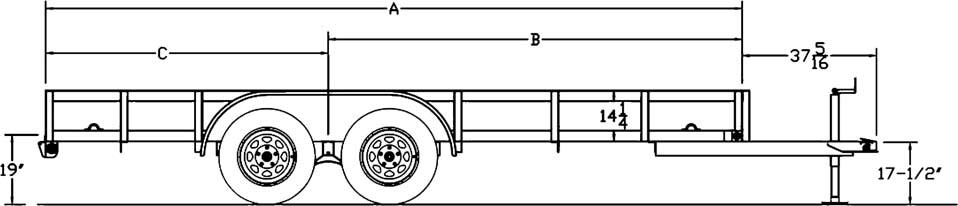

Dimensions
| Length | A | B | C |
|---|---|---|---|
| 10' | 121-1/2" | 73" | 48-1/2" |
| 12' | 145-1/2" | 85" | 60-1/2" |
| 14' | 169-1/2" | 103" | 72-1/2" |
| 16' | 193-1/2" | 115" | 78-1/2" |
| 18' | 217-1/2" | 127" | 90-1/2" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 10' | 1,225# | 3,775# | N/A |
| 12' | 1,265# | 3,735# | N/A |
| 14' | 1,400# | 3,600# | N/A |
| 16' | 1,535# | 3,465# | N/A |
| 18' | 1,670# | 3,330# | N/A |
Standard/Optional Equipment
Standard Equipment
- (4) Tie Down Loops Inside Bed
- EZ Lube Hubs
- Dexter Brand Axles
- Nev-R-Adjust Electric Brakes
- Cambered Axles
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Protected Wiring
- Removable Sand Foot on Jack
- Complete Break-A-Way System w/ Charger
- Radial Tires
Optional Equipment
| Category | Description |
|---|---|
| BODY | 1/8" Diamond Plate Steel Floor |
| BODY | 2 High Sides (Open) |
| BODY | 3 High Sides (Open) |
| BODY | 4 High Sides (Open |
| BODY | Blackwood Rubber Infused Floor |
| BODY | Enclose Sides w/ Expanded Metal |
| BODY | Enclose Sides w/ Sheet Metal |
| BODY | Extra Wide Frame (83" Wide Between Fenders) |
| BODY | Fold-Back/Wrap Tongue (14 or longer) |
| BODY | Heavy Duty Frame (4" x 3" x 1/4" Angle) |
| BRAKES | Electric Brakes on 2nd Axle |
| BRAKES | Hydraulic Surge Brakes 1 Axle w/ Atwood Actuator |
| BRAKES | Hydraulic Surge Brakes 2 Axles w/ Atwood Actuator |
| CARGO CONTROL | Additional Tie Loops |
| CARGO CONTROL | Tie Down Pockets |
| COUPLER | 2" Forged Coupler |
| COUPLER | 2-5/16" Forged Coupler |
| COUPLER | 2-5/16" Stamped Coupler |
| JACK | 2,000# Fold-Up Jack |
| JACK | Set Back Jack |
| RAMPS | 4 Slide-In Angle Ramps |
| RAMPS | 4 Tall Rear Rampgate |
| RAMPS | 4 Tall Rear Rampgate- Extra Wide (83" Wide) |
| RAMPS | 5 Tall Rear Rampgate |
| RAMPS | 5 Tall Rear Rampgate- Extra Wide (83" Wide) |
| RAMPS | Gas Shock Assist Option for Rampgate |
| TIRE/WHEEL | Spare Tire (ST205/75R-15 LR-C) |
| TIRE/WHEEL | Spare Tire Mount (Side) |
