Big Tex Dump Trailer

$7,099.00

(423) 277-6159

New Tazewell, TN

The 14LX Tandem Axle Low Profile Extra Wide Dump Trailer from Big Tex is the industry leader in its class across the country. This unit combines a tube frame and heavy duty cross members in addition to the most complete box unit, providing durability you can count on.

  • Overview
  • Features/Specifications
  • Standard/Optional Equipment
  • Financing

Overview

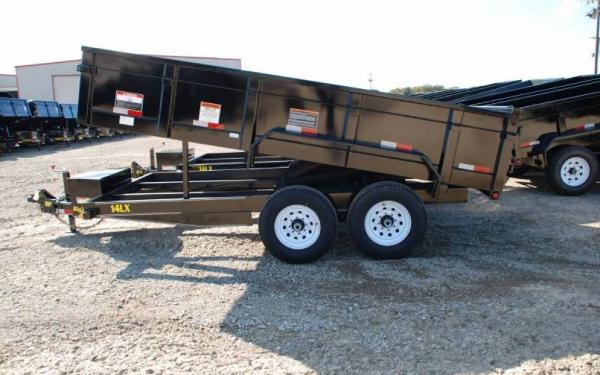

Big Tex Dump Trailer

Big Tex Dump Trailer

14LX-16


Specs:

  • G.V.W.R. 14,000lbs
  • G.A.W.R. (Ea. Axle) 7,000lbs
  • 2-5/16" Adjustable Forged Coupler
  • 3/8" Grd. 70Safety Chains w/Safety Latch Hook (2 each)
  • 7K TW Drop Leg Jacks,
  • 6" Channel Fold Back Tongue
  • 6" X 3" Tube on 14'; 8"x3" Tube on 16'
  • 6" Channel Crossmembers
  • 3" Channel Bed Crossmembers
  • 3" Channel Bed Long Sils
  • 6-1/2" Formed Angle Bed Side Rails
  • Double Square Broke Diamond Plate Fenders
  • Two 7,000# EZ Lube Axles w/Elec. Brake
  • Multi-Leaf Slipper Spring Suspension w/Equalizer
  • ST235/80 R-16 Load Range E Tires
  • 16 x 6 HD White Modular 8 Bolt Wheel
  • 10 Gauge Smooth Steel Floor
  • D.O.T Stop, Tail, Turn & Clearance LED lights
  • 7-Way RV Elec. Plug
  • Steel is Cleaned to Ensure a Professional Smooth Finish.
  • Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
  • LED Lighting

Standard Features:

  • Safety Chains Attached w/Cold Rolled Eyelets
  • Lockable Pump & Battery Box Mounted in Front of Bed
  • Modular Sealed Wiring Harness
  • 24", 12 Ga. Sides w/Formed Channel Supports
  • 10 Ga. Floor
  • J-Hooks for Tie Downs
  • Stake Pockets
  • Fully Formed Shroudd for Tarp
  • 4-5/8" D-Rings Inside Bed
  • Fully Self Contained Electric Hydraulic Scissor Lift
  • 45 Degree Dump Angle
  • 5 Amp Charger
  • Cambered EZ Lube Axles w/ Electric Brakes
  • Complete Break-A-Way System w/Charge Line
  • Grommet Mount Sealed Lighting
  • Combo Gate

Availability:
In Stock
Axle Config:
Tandem
Max Payload:
9750 lbs.
External Width:
83"
External Length:
16'
Hitch Type:
Bumper Pull
Category:
Dump Trailers
Year:
2018
Condition:
New
Material:
Steel
Open/Enclosed:
Open
Rear Type:
Combo Gate
Color:
Black
GVWR:
14000
Capacity:
9750

Features/Specifications

Features

Axle (2) 7,000# EZ Lube w/Elec. Brakes
Jack 8,000# Top Wind Drop Leg (Bolted On)
Tire ST235/80 R-16 Load Range E
Floor 10 Gauge Smooth Steel
Frame 6" x 3" Rectangular Tubing
Wheel 16" x 6"; HD Black Mod 8 Bolt
Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Tongue 6" Channel Fold Back/Wrap
Coupler Adjustable 2-5/16" 18,000# Demco EZ Latch
Fenders 9" x 72" 14Ga. Diamond Plate Double Square Broke
G.V.W.R. 14,000#
Elec. Plug 7-Way RV
Hitch Type Bumper Pull
Suspension Multi-Leaf Spring w/Equalizer
Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
Safety Chains 3/8" Grd. 70 w/Safety Latch Hook (2 each)
Dump Body Sides 24" Tall Sides (12 Gauge)
Bed Crossmembers 3" Channel, 16" Centers
Dump Body Top Rail 2" x 2" Square Tubing
G.A.W.R. (Ea. Axle) 7,000#

Specifications

Heavy Duty Tandem Axle Extra Wide Dump Trailer

Big Tex 14LX Heavy Duty Tandem Axle Extra Wide Dump Trailer

Model Description
14LX-12 83" x 12' Heavy Duty Tandem Axle Extra Wide Dump
14LX-14 83" x 14' Heavy Duty Tandem Axle Extra Wide Dump
14LX-16 83" x 16' Heavy Duty Tandem Axle Extra Wide Dump

Trailer Weights & Capacities

Length Empty Weight Payload Box Capacity
12' 3,570# 10,430# 6.2 Cubic Yards
14' 3,960# 10,040# 7.2 Cubic Yards
16' 4,250# 9,750# 8.3 Cubic Yards

Standard/Optional Equipment

Standard Equipment

  • Adjustable 2-5/16" 18,000# Demco EZ Latch
  • 8,000# Top Wind Drop Leg Jack
  • Lockable Pump & Battery Box Mounted in Front of Bed
  • 24" Tall, 12 Gauge Sides w/Formed Channel Supports
  • 10 Gauge Steel Floor
  • Fully formed Tarp Shroud on Front
  • Crank Style Roll Tarp- Standard Equipped
  • Tarp Rod Included to Secure Tarp on Rear
  • J-Hooks on Sides & Rear for Tarp Control
  • Stakepockets Along Sides
  • Self Contained Electric/Hydraulic Scissor Hoist
  • Power Up/Power Down Hydraulic Pump
  • 12V Interstate Deep Cycle Battery
  • 110V On-Board Battery Charger
  • Dexter Brand Axles
  • Cambered Axles w/EZ Lube Hubs
  • Nev-R0Adjust Electric Brakes on All Hubs
  • Grommet Mount Sealed Lighting
  • L.E.D. Lighting Package
  • Sealed, Modular Wiring harness
  • Complete Break-A-Way System
  • Zip Breakaway Bacle
  • Diamond Plate Fenders
  • 2" Square Tubing Top Rail on Dump Bed
  • Combo Gate (Barn Doors & Spreader Gate)
  • (4) 1/2" D-Rings Inside Bed to Secure Equipment
  • Spare Tire Mount
  • Radial Tires

Optional Equipment

Category Description
BODY 24" Expanded Metal Side Extensions
BODY 3 Solid Sheet Metal Sides
BODY 4 Solid Sheet Metal Sides
BRAKES Hydraulic Surge Brakes on Both Axles
COUPLER Adjustable Pintle in Channel ILO Coupler
JACK 12,000# Top Wind Drop Leg Jack
JACK 7,000# Elec/Hyd. Jack by Stillwell
POWER 5 Watt Solar Charger
POWER Wireless Remote
RAMPS 7 Slide In Ramp Package
TIRE/WHEEL Spare Tire (ST235/80 R-16 LR-E)
TIRE/WHEEL Spare Tire Upgrade (ST235/85 R-16 LR-G)
TIRE/WHEEL Tire Upgrade (ST235/85 R-16 LR-G)

Contact Dealer
