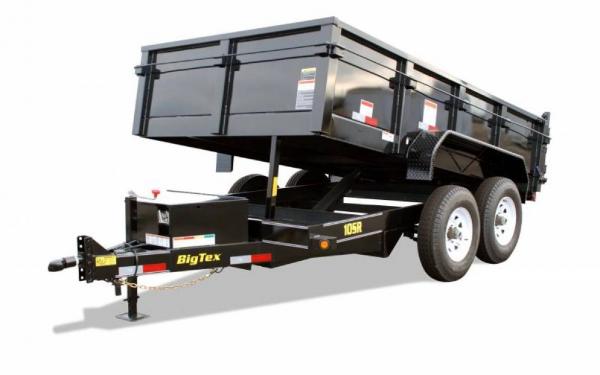

Big Tex Dump Trailer
$5,699.00
(423) 277-6159New Tazewell, TN
Designed, built, and powdercoated for the long haul, the 10SR Pro Series Tandem Axle Single Ram Dump Trailer is a medium-duty workhorse that has your back. Hauling dirt, gravel, mulch, or even manure? No problem. The 10SR is equipped with a straight ram hydraulic lifting system that makes dump outs a smoother and more productive experience. From homeowners and ranchers to construction workers, its time to let the 10SR do the hard work and save your back - keeping you ready for tomorrow and every day after.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
Big Tex Dump Trailer
Big Tex Dump Trailer
10SR-12
Specs:
- G.V.W.R. 9,990lbs
- G.A.W.R. (Ea. Axle) 5,200lbs
- 2-5/16" Adjustable Forged Coupler
- 1/4 Grd. 70 Safety Chains w/Safety Latch Hook (2 each)
- 7K TW Drop Leg (Bolted On)
- 6" Channel Tongue
- 6" Channel Rectangular Tubing Frame
- 8" Channel Crossmembers
- 3" Channel Bed Crossmembers
- 3" Channel Bed Long Sils
- 6 1/2" Formed Angle Bed Side Rails
- 9" x 72" Double Square Broke Diamond Plate Fenders
- Two 5,200lb EZ Lube Axles w/Elec. Brakes
- Multi-Leaf Spring Suspension w/Equalizer
- ST235/80 D-16 Load Range E Tires
- 16 x 6 White Spoke 6 Bolt Wheel
- 10 Gauge Smooth Steel Floor
- LED D.O.T. Stop, Tail, Turn & Clearance lights
- 7-Way RV Elec. Plug
- Steel is Cleaned to Ensure a Professional Smooth Finish
- Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
Standard Features:
- Safety Chains Attached w/Cold Rolled Eyelets
- Lockable Pump & Battery Box Mounted in Front of Bed
- Modular Sealed Wiring Harness
- 24", 12 Gauge Sides
- 10 Gauge Floor
- J-Hooks for Tie Down
- 13 Stake Pockets(Sides and Front)
- Fully Formed Shroud for Tarp
- Self-Contained Electric/Hydraulic Single Cylinder Lift
- 45 Degree Dump Angle
- Spare Tire Mount
- Cambered EZ Lube Axles w/ Electric Brake on Each
- Complete Break-A-Way System w/Charge Line
- Grommet Mount Sealed LED Lighting
- Hoist Comparison
- Combo Gate
- AVAILABLE IN BLACK ONLY
- Availability:
- In Stock
- Axle Config:
- Tandem
- Max Payload:
- 6830 lbs.
- External Width:
- 83"
- External Length:
- 12'
- Hitch Type:
- Bumper Pull
- Category:
- Dump Trailers
- Year:
- 2018
- Condition:
- New
- Material:
- Steel
- Open/Enclosed:
- Open
- Rear Type:
- Combo Gate
- Color:
- Black
- GVWR:
- 9990
- Capacity:
- 6830
Features/Specifications
Features
| Axle | Two 5,200# Quick Lubricating w/Elec. Brakes |
|---|---|
| Jack | 8,000# Top Wind Drop Leg |
| Tire | ST235/80 R-16 Load Range E |
| Floor | 10 Gauge Smooth Steel |
| Frame | 6" x 2" Rectangular Tubing |
| Wheel | 16" x 6"; Black Mod 6 Bolt |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Tongue | 6" Channel |
| Coupler | 2-5/16" Adjustable Forged |
| Fenders | 9" x 72" 14 Ga. Diamond Plate Double Square Broke |
| G.V.W.R. | 9,990# |
|---|---|
| Elec. Plug | 7-Way RV |
| Hitch Type | Bumper Pull |
| Suspension | Multi-Leaf Spring w/Equalizer |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| Safety Chains | 1/4" Grd. 70 w/Safety Latch Hook (2 each) |
| Dump Body Sides | 24" Tall Sides (12 Gauge) |
| Bed Crossmembers | 3" Channel, 16" Centers |
| Dump Body Top Rail | 2" x 2" Square Tubing |
| G.A.W.R. (Ea. Axle) | 5,200# |
Specifications
Big Tex 10SR Pro Series Tandem Axle Single Ram Dump Trailer
| Model | Description |
|---|---|
| 10SR-12XL | 83" x 12' Pro Series Tandem Axle Single Ram Dump |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 12' | 3,160# | 6,830# | 6.1 Cubic Yards |
Standard/Optional Equipment
Standard Equipment
- Adjustable 2-5/16" Forged Coupler
- 8,000# Top Wind Drop Leg
- Lockable Pump & Battery Box Mounted in Front of Bed
- 24" Tall, 12 Gauge Sides w/Formed Channel Supports
- 10 Gauge Steel Floor
- Tarp Mounting Brckets on Front of Bed
- J-Hooks on Sides & Rear for Tarp Control
- Stakepockets Along Sides
- Self Contained Electric/Hydraulic Single Cylinder Lift
- Power Up/Power Down Hydraulic Pump
- 12V Interstate Deep Cycle Battery
- 110V On-Board Battery Charger (5 Amp)
- Premium Brand Axles
- Cambered Axles w/Quick Lubricating Hubs
- Forward Self Adjusting Electric Brakes on All Hubs
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed, Modular Wiring Harness
- Complete Break-A-Way System
- Diamond Plate Fenders
- 2" Square Tubing Top Rail on Dump Bed
- Combo Gate (Barn Doors & Spreader Gate)
- (4) 1/2" D-Rings Inside Bed to Secure Equipment
- Spare Tire Mount
- Radial Tires
Optional Equipment
| Category | Description |
|---|---|
| CARGO CONTROL | Crank Style Roll Tarp |
| RAMPS | 6.5 Slide In Ramp Package |
| TIRE/WHEEL | Spare Tire (ST235/80 R-16 LR-E) |
