Big Tex Dump Trailer

$3,799.00

(423) 277-6159

New Tazewell, TN

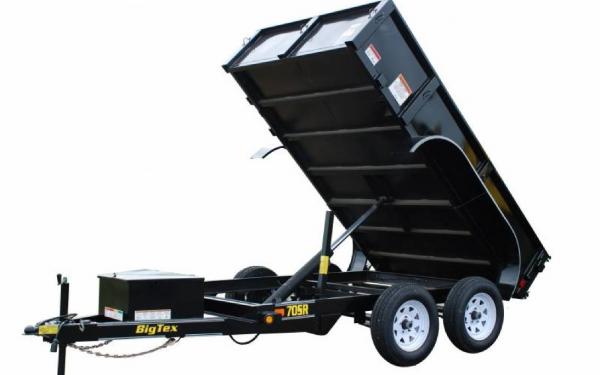

For those who need a light-duty trailer that has more power to tackle unpredictable tasks, the 70SR Tandem Axle Single Ram Dump Trailer is built for you. Haul and dump mulch, dirt, gravel, and other light loads with confidence around the home or farm with this durable and reliable trailer. Equipped with a lockable battery box and straight ram hydraulic lifting system, the 70SR offers a secure and versatile experience thats designed to meet the needs of hardworking homeowners, industrious farmers, and ambitious go-getters - someone just like you.

  • Overview
  • Features/Specifications
  • Standard/Optional Equipment
  • Financing

Overview

Big Tex Dump Trailer

Big Tex Dump Trailer

70SR-10



Specs:

  • G.V.W.R. 7,000lbs
  • G.A.W.R. (Ea. Axle) 3,500lbs
  • 2-5/16 Stamped A-Frame Coupler
  • 1/4 Grd. 70 Safety Chains w/Safety Latch Hook (2 each)
  • 2K Top Wind Jacks (Bolted On)
  • 5" Channel Tongue
  • 5" Channel Frame
  • 6" Channel Crossmembers
  • 2" Bed Crossmembers
  • 3" x 2" Bed Side Rails
  • 9 x 72 DSB Diamond Plate Fenders
  • Two 3,500lb Axels EZ Lube w/Elec. Brakes
  • Multi-Leaf Spring Suspension w/Equalizer
  • ST205/75-15 Load Range C Tires
  • 15 x 5 White Spoke 5 Bolt Wheel
  • 16 Gauge Smooth Steel Floor
  • LED D.O.T. Stop, Tail, Turn & Clearance lights
  • 7-Way RV Elec. Plug
  • Steel is Cleaned to Ensure a Professional Smooth Finish
  • Superior Quality Finish is Applied for a Highly Decorative and Protective Finish

Standard Features:

  • Safety Chains Attached w/Cold Rolled Eyelets
  • Lockable Pump & Battery Box Mounted in Front of Bed
  • 20, 16 Ga. Sides w/Formed Channel Supports
  • J-Hooks for Tie Down
  • Tarp Brackets
  • Single Cylinder Lift
  • 45 Degree Dump Angle
  • Cambered EZ Lube Axles w/Electric Brake on Each
  • Complete Break-A-Way System w/Charge Line
  • Grommet Mount Sealed LED Lighting
  • 1 Piece 2 Way Style Rear Gate
  • Hoist Comparison

Availability:
In Stock
Axle Config:
Tandem
Max Payload:
5000 lbs.
External Width:
72"
External Length:
10'
Hitch Type:
Bumper Pull
Category:
Dump Trailers
Year:
2018
Condition:
New
Material:
Steel
Open/Enclosed:
Open
Rear Type:
Double Rear
Color:
Black
GVWR:
7000
Capacity:
5000

Features/Specifications

Features

Axle (2) 3,500# Quick Lubricating w/Elec. Brakes
Jack 2,000# Top Wind (Bolted On)
Tire ST205/75-15 Load Range C
Floor 16 Gauge Smooth Steel
Frame 5" Channel
Wheel 15" x 5"; Black Spoke 5 on 5 Bolt Pattern
Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Tongue 5" Channel
Coupler 2-5/16" Stamped A-Frame
Fenders 9" x 72" 14 Ga. Diamond Plate Double Square Broke
G.V.W.R. 7,000#
Elec. Plug 7-Way RV
Hitch Type Bumper Pull
Suspension Multi-Leaf Spring w/Equalizer
Crossmembers 2" Channel 17" Centers
Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
Safety Chains 1/4" Grd. 70 w/Safety Latch Hook (2 each)
Bed Side Rails Formed, Integrated with sides
Bed Crossmembers 20" Tall Sides (16 Gauge)
G.A.W.R. (Ea. Axle) 3,500#

Specifications

Tandem Axle Single Ram Dump Trailer

Big Tex 70SR Tandem Axle Single Ram Dump Trailer

Model Description
70SR-10-5W 60" x 10' Tandem Axle Single Ram Dump

Trailer Weights & Capacities

Length Empty Weight Payload Box Capacity
10'-5W 1,730# 5,270# 3.0 Cubic Yards

Standard/Optional Equipment

Standard Equipment

  • Lockable Pump & Battery Box Mounted in Front of Bed
  • 20", 16 Ga. Sides w/Formed Channel Supports
  • Tarp Mounting Brackets on Front of Bed
  • J-Hooks on Sides & Rear for Tarp Control
  • Stakepockets Along Sides
  • Self Contained Electric/Hydraulic Single Cylinder Lift
  • Power Up/Power Down Hydraulic Pump
  • 12V Interstate Deep Cycle Battery
  • Quick Lubricating Hubs
  • 110V On-Board Battery Charger (5 Amp)
  • Premium Brand Axles
  • Cambered Axles
  • Forward Self Adjusting Electric Brakes
  • Diamond Plate Fenders
  • Grommet Mount Sealed Lighting
  • L.E.D. Lighting Package
  • Sealed, Modular Wiring Harness
  • Removable Sand Foot on Jack
  • Complete Break-A-Way System
  • Double Rear Doors
  • Radial Tirles

Optional Equipment

Category Description
CARGO CONTROL Crank Style Roll Tarp
TIRE/WHEEL Spare Tire (ST205/75 R-15 LR-C)

Contact Dealer
