Big Tex Utility Trailer
$1,199.00
(423) 277-6159New Tazewell, TN
Hauling around the house and garden, unsure about what tasks youre going to face in the day ahead? Then haul with confidence with the 30SA Single Axle Utility Trailer. Equipped with an angled frame and professional-grade finish to easily haul large ATVs and zero-turn mowers, the 30SA offers a reliable and cost-effective way to be prepared for whatever hauling needs come your way.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview

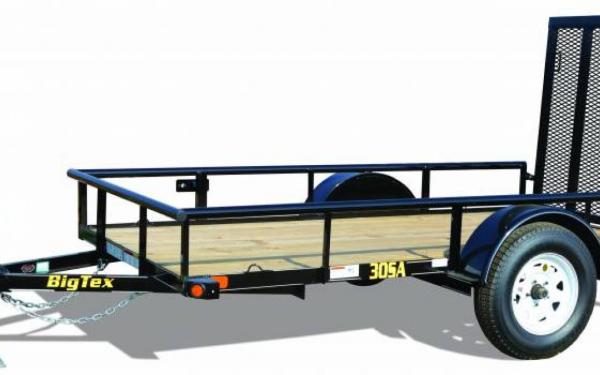

Big Tex Utility Trailer
Big Tex Utility Trailer
30SA-08BK4RG
Standard Features:
- Safety chains attached w/Cold Rolled Eyelets
- Sand Foot on Jack
- Lower Jack Support Plate
- 3,500# Idler EZ Lube Axle w/Flanges for Easy Brake Addition
- Pipe Top Rail
- 4 Tie Down Loops
- EZ Lube Axle
- Grommet Mount Sealed LED Lighting
Specs:
- G.A.W.R. 2,995#
- Coupler 2" A-Frame
- Safety Chains 1/4" Grd. 30 w/Safety Latch Hook (2 each)
- Jack 2K Top Wind (Bolted On)
- Tongue 3" Channel
- Top Rail 30SA -- 2" Pipe/35SA -- 2-3/8" Pipe
- Frame 3" x 2" x 3/16" Angle
- Crossmembers 3" x 2" x 3/16" Angle
- Uprights 15" Tall -- 1/2" Angle (30SA) and 2" Angle (35SA)
- Fenders 9" x 32" Rolled Formed w/Back
- Axle 3,500# EZ Lube w/Brake Flanges
- Suspension Multi-Leaf Slipper Spring
- Tire ST205/75-15 Load Range C
- Wheel 15 x 5 White Spoke 5 Bolt
- Floor 2" Pine
- Lights LED D.O.T. Stop, Tail, Turn, & Clearance
- Elec. Plug 4-Way Flat w/Loom
- Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish
- Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
- 4 Tie Down Loops
- EZ Lube Axle
- Grommet Mount Sealed LED Lighting
- Availability:
- In Stock
- Axle Config:
- Single
- Max Payload:
- 2272 lbs.
- External Width:
- 60"
- Hitch Type:
- Bumper Pull
- Category:
- Utility Trailers
- Year:
- 2018
- Condition:
- New
- Material:
- Steel
- Open/Enclosed:
- Open
- Rear Type:
- Ramp
- Color:
- Black
- GVWR:
- 2995
- Capacity:
- 2272
Features/Specifications
Features
| Axle | 3,500# Quick Lubricating Hub Axle w/ Brake Flanges |
|---|---|
| Jack | 2,000# Top Wind, Set-Back Jack |
| Tire | ST205/75R-15 Load Range C |
| Floor | 2" Treated Pine or Douglas Fir* |
| Frame | 3" x 2" x 3/16" Angle |
| Wheel | 15" x 5; Black Spoke, 5 on 5 Bolt Pattern |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Tongue | 3" Channel |
| Coupler | 2" A-Frame |
| Fenders | 9" x 32" Rolled Formed w/ Back |
| G.V.W.R. | 2,995# |
|---|---|
| Top Rail | 2" x 2" Square Tubing |
| Uprights | 15" Tall Angle, 1-1/2" Angle |
| Elec. Plug | 4-Way Flat w/ Loom |
| Hitch Type | Bumper Pull |
| Suspension | Multi-Leaf Spring |
| Crossmembers | 3" x 2" x 3/16" Angle |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional, Smooth Finish |
| Safety Chains | 1/4" Grd. 30 w/ Safety Latch Hook (2 ea) |
| G.A.W.R. (Ea. Axle) | 3,500# |
Specifications
Big Tex 30SA Single Axle Utility Trailer
| Model | Description |
|---|---|
| 30SA-08 | 60" x 08' Single Axle Utility Trailer |
| 30SA-10 | 60" x 10' Single Axle Utility Trailer |
Dimensions
| Length | A | B | C |
|---|---|---|---|
| 8' | 97-1/2" | 61" | 36-1/2" |
| 10' | 121-1/2" | 73" | 48-1/2" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 8' | 663# | 2,332# | N/A |
| 10' | 723# | 2,272# | N/A |
Standard/Optional Equipment
Standard Equipment
- (4) Tie Down Loops Inside Bed
- Set Back Jack
- Quick Lubricating Hubs
- Premium Brand Axles
- Durable Pipe Top Rail
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Protected Wiring
- Radial Tires
- Brake Flanges on Axle for Easy Brake Addition
- Removable Sand Foot on Jack
- A-Frame Channel Tongue
Optional Equipment
| Category | Description |
|---|---|
| BODY | 2 High Sides (Open) |
| BODY | 3 High Sides (Open) |
| BODY | 4 High Sides (Open) |
| BODY | Blackwood Pro Rubber Infused Floor |
| BODY | Car Hauler Style (No Side Rails) |
| BODY | Enclose Sides w/ Expanded Metal |
| BODY | Enclose Sides w/ Sheet Metal (Per Square Foot) |
| BRAKES | Electric Brakes w/ Complete Brake-Away Kit |
| CARGO CONTROL | Additional Tie Loops |
| CARGO CONTROL | Stake Pockets |
| COUPLERS | 2" Forged Coupler |
| JACK | 2,000# Fold-Up Jack |
| RAMPS | 4 Tall Rear Rampgate w/ Coil Spring Assist |
| RAMPS | 5 Tall Rear Rampgate W/ Coil Spring Assist |
| TIRE/WHEEL | Spare Tire Mount (Side) |
| TIRE/WHEEL | Spare Tire and Wheel (ST205/75R-15 LR-C) |
