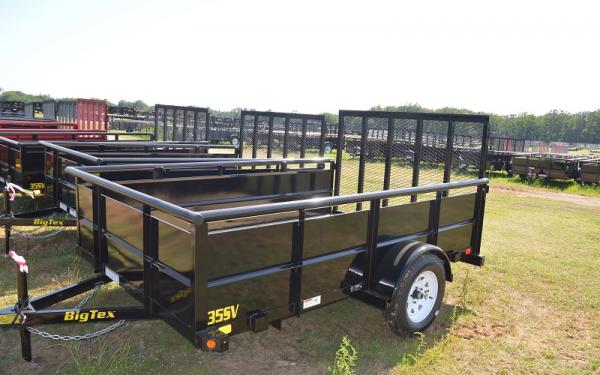

Big Tex 35SV 77” Wide Single Axle Vanguard
Call for Quote
(423) 277-6159New Tazewell, TN
On the job and need a trailer with a bit more space to haul landscaping equipment and tools? Then its time to get to work with the 35SV Single Axle Vanguard Trailer. Designed to haul without hassle from job to job, the 35SV features a pipe-top rail and higher sides to protect cargo and keep tools in place and ready to go. And if youre looking to take your landscaping operations to the next level, you can expand your hauling capabilities with an optional rear ramp gate - perfect for transporting a variety of vehicles, including golf carts, ATVs, side-by-sides, and more.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
Big Tex 35SV 77” Wide Single Axle Vanguard
Big Tex 35SV 77” Wide Single Axle Vanguard
The 35SV Single Axle Vanguard Trailer has a pipe top rail and higher sides to provide you the versatility to haul just about anything while protecting your cargo.
Structural Details:
•3” x 2” x 3/16” Angle Frame
•3” x 2” x 3/16” Angle Crossmembers
•3” Channel Tongue
•24” V-Crimped Steel Panel Sides
•Rolled Formed Fenders
•Pipe Top Rail
•3-Year Structural Warranty
Where the Rubber Meets the Road:
•Premium Dexter EZ Lube 3,500# Axles
•Brake Flanges on Axle for Easy Brake Addition
•ST 205/75 R15 Radial Tires
More Standard Features:
•2” A-Frame Coupler
•Top Wind Jack w/ Sand Foot
•Protected Wiring
•All Grommet Mount Sealed LED Lighting and Reflective Conspicuity Tape
•4 Tie Down Loops Inside Bed
•2'' Treated Pine or Douglas Fir Wood Floors (#2 or Better)
•Safety Chains Attached w/Cold Rolled Eyelets
•Automotive Grade Highly Decorative and Protective Finish
Available Lengths:
•10’
•12’
•14’
Optional Add-Ons:
•Electric Brakes w/ Complete Break-A-Way Kit
•Additional Tie Loops
•4’ Tall Rear Rampgate
•Gas Shock Assist Option for Rampgate
•Spare Tire Mount
- Axle Config:
- Single
- External Width:
- 60"
- External Length:
- 10-14
- Hitch Type:
- Bumper Pull
- Category:
- Utility Trailers
- Year:
- 2018
- Condition:
- New
- Material:
- Steel
- Open/Enclosed:
- Open
- Rear Type:
- Ramp
- Color:
- Black
- GVWR:
- 2995
Features/Specifications
Features
| Axle | 3,500# Quick Lubricating Axle w/ Brake Flanges |
|---|---|
| Jack | 2,000# Top Wind (Bolted On) |
| Tire | ST205/75R-15 Load Range C |
| Floor | 2" Treated Pine or Douglas Fir* |
| Frame | 3" x 2" x 3/16" Angle |
| Sides | 24" Tall V-Crimped Steel Panels (16 Ga.) |
| Wheel | 15 x 5; Black Mod, 5 on 5 Bolt Pattern |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Tongue | 3" Channel |
| Coupler | 2" A-Frame |
| Fenders | 9" x 32" Rolled Formed w/ Back |
|---|---|
| G.V.W.R. | 2,995# |
| Top Rail | 2" x 2" Square Tubing |
| Elec. Plug | 4-Way Flat w/ Loom |
| Hitch Type | Bumper Pull |
| Suspension | Multi-Leaf Spring |
| Crossmembers | 3" x 2" x 3/16" Angle |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional, Smooth Finish |
| Safety Chains | 1/4" Grd. 30 w/ Safety Latch Hook (2 ea) |
| G.A.W.R. (Ea. Axle) | 2,995# |
Specifications
Big Tex 35SV Single Axle Vanguard Trailer
| Model | Description |
|---|---|
| 35SV-10 | 77" x 10' Single Axle Vanguard Trailer |
| 35SV-12 | 77" x 12' Single Axle Vanguard Trailer |
| 35SV-14 | 77" x 14' Single Axle Vanguard Trailer |
Dimensions
| Length | A | B | C |
|---|---|---|---|
| 10' | 121-1/2" | 73" | 48-1/2" |
| 12' | 145-1/2" | 85" | 61-1/2" |
| 14' | 169-1/2" | 97" | 72-1/2" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 10' | 1,100# | 1,895# | N/A |
| 12' | 1,290# | 1,705# | N/A |
| 14' | 1,480# | 1,515# | N/A |
Standard/Optional Equipment
Standard Equipment
- (4) Tie Down Loops Inside Bed
- (4) Stake Pockets on Outside of Frame
- Set Back Jack
- Quick Lubricating Hubs
- Premium Brand Axle
- Durable Tubing Top Rail
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Protected Wiring
- Radial Tires
- Brake Flanges on Axle for Easy Brake Addition
- Removable Sand Foot on Jack
- A-Frame Channel Tongue
- 29-3/8" Tall Sides w/ 24" V-Crimped Steel Panels
Optional Equipment
| Category | Description |
|---|---|
| BODY | Blackwood Pro Rubber Infused Floor |
| BRAKES | Electric Brakes w/ Complete Break-Away Kit |
| CARGO CONTROL | 3 Place Weed Trimmer Racks (Bolt On) |
| CARGO CONTROL | Additional Stake Pockets |
| CARGO CONTROL | Additional Tie Loops |
| CARGO CONTROL | Bolt-On Landscape Box (24" x 24" x 81-1/2") |
| COUPLER | 2" Forged Coupler |
| JACK | 2,000# Fold-Up Jack |
| RAMPS | 4 Tall Rear Rampgate |
| RAMPS | 5 Tall Rear Rampgate |
| TIRE/WHEEL | Spare Tire & Wheel (ST205/75R-15 LR-C) |
| TIRE/WHEEL | Spare Tire Mount (Side) |
