70PI TAND UTILITY PI (7x14) GA ADJ COUP, 4RG, SPMT, BK
VIN: 040229
Call for Quote
(423) 277-6159New Tazewell, TN
When it comes to hauling light-duty equipment on the farm or ranch, theres nothing more versatile than the 70PI-X Tandem Axle Pipe Top Utility Trailer. Coming standard with an extra wide 83 wide deck, this trailer is built to transport small equipment and other loads for agricultural applications. Its sturdy. Its durable. Its dependable. Its everything you need in a cost-effective - yet adaptable - utility trailer that gets the job done from sunrise till sunset.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
70PI TAND UTILITY PI (7x14) GA ADJ COUP, 4RG, SPMT, BK
7K TAND UTILITY PI (7x14) GA ADJ COUP, 4RG, SPMT, BK
- Axle Config:
- Tandem
- Max Payload:
- 5100 lbs.
- External Width:
- 83"
- External Length:
- 14'
- Weight:
- 1900
- Hitch Type:
- Bumper Pull
- Category:
- Utility Trailers
- Year:
- 2018
- Condition:
- New
- Material:
- Steel
- Open/Enclosed:
- Open
- Rear Type:
- Ramp
- Warranty:
- Factory Warranty Included
- Color:
- Black
- GVWR:
- 7000
- Capacity:
- 5100
Features/Specifications
Features
| Axle | (2) 3,500# Quick Lubricating w/ (1) Elec. Brake |
|---|---|
| Jack | 2,000# Top Wind, Set-Back Jack |
| Tire | ST205/75R-15 Load Range C |
| Floor | 2" Treated Pine or Douglas Fir* |
| Frame | 4" x 3" x 1/4" Angle |
| Wheel | 15" x 5"; Black Mod 5 on 5 Bolt Pattern |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Tongue | 4" Channel Fold Back/Wrap Tongue |
| Coupler | Adjustable, 7,000#, 2" Forged Coupler |
| Fenders | 9" x 72" Tear Drop w/ Back |
|---|---|
| G.V.W.R. | 7,000# |
| Top Rail | 2" x 2" Square Tubing |
| Uprights | 16" Tall 3" x 2" x 3/16" Angle |
| Elec. Plug | 7-Way RV |
| Suspension | Multi-Leaf Spring w/ Equalizer |
| Crossmembers | 3" x 2" x 3/16" Angle |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional, Smooth Finish |
| Safety Chains | 1/4" Grd. 70 w/ Safety Latch Hook (2 each) |
| G.A.W.R. (Ea. Axle) | 3,500# |
Specifications

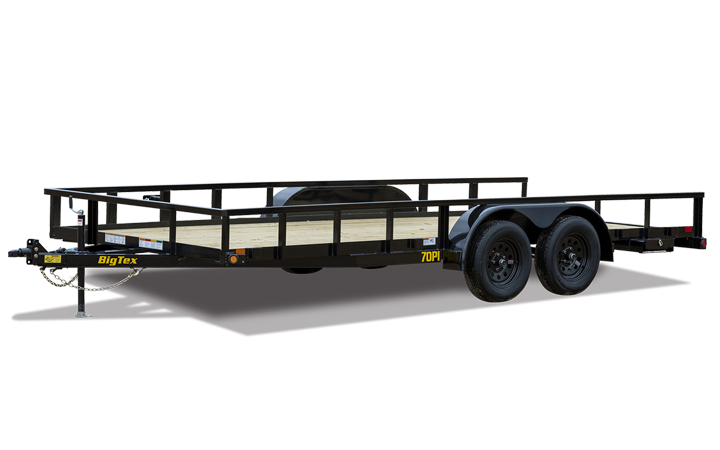

Big Tex 70PI-X Tandem Axle Pipe Utility Trailer
| Model | Description |
|---|---|
| 70PI-14X | 83" x 14' Tandem Axle Pipe Top Utility Trailer |
| 70PI-16X | 83" x 16' Tandem Axle Pipe Top Utility Trailer |
| 70PI-18X | 83" x 18' Tandem Axle Pipe Top Utility Trailer |
| 70PI-20X | 83" x 20' Tandem Axle Pipe Top Utility Trailer |

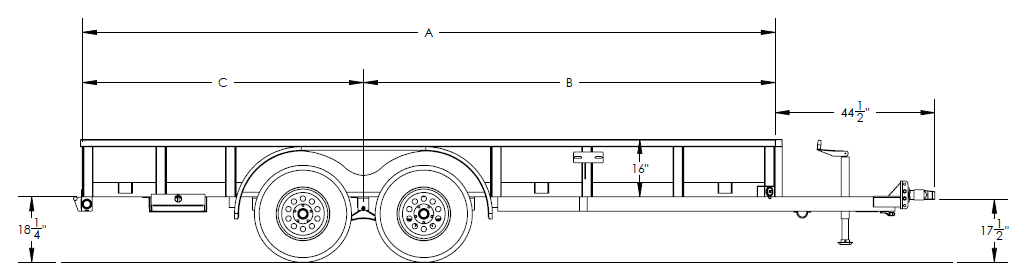

Dimensions
| Length | A | B | C |
|---|---|---|---|
| 14' | 169-1/2" | 103" | 72-1/2" |
| 16' | 193-1/2" | 115" | 78-1/2" |
| 18' | 217-1/2" | 127" | 90-1/2" |
| 20' | 240" | 138" | 102" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 14' | 1,780# | 5,220# | N/A |
| 16' | 1,860# | 5,140# | N/A |
| 18' | 1,940# | 5,060# | N/A |
| 20' | 2,020# | 4,980# | N/A |
Standard/Optional Equipment
Standard Equipment
- Stake Pockets on Outside Frame
- Adjustable, Forged, 7,000# Coupler
- Fold Back/Wrap Tongue
- Set-Back Jack
- Quick Lubricating Hubs
- Premium Brand Axles
- Forward Self Adjusting Electric Brakes
- Cambered Axles
- Durable Tubing Top Rail
- Tear Drop Style Fenders
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Protected Wiring
- Removable Sand Foot on Jack
- Complete Break-A-Way System w/ Charger
- Radial Tires
Optional Equipment
| Category | Description |
|---|---|
| BODY | 1/8" Diamond Plate Steel Floor (Per Square Foot) |
| BODY | 2 High Sides (Open) |
| BODY | 3 High Sides (Open) |
| BODY | 4 High Sides (Open) |
| BODY | Blackwood Pro Rubber Infused Floor |
| BODY | Enclose Sides w/ Expanded Metal |
| BODY | Enclose Sides w/ Sheet Metal |
| BRAKES | Electric Brakes on 2nd Axle |
| CARGO CONTROL | Additional Tie Down Pockets |
| COUPLER | 2-5/16" Forged Coupler |
| COUPLER | 2-5/16" Stamped Coupler |
| JACK | 2,000# Fold-Up Jack |
| JACK | 8,000# Drop-Leg Jack |
| RAMPS | 4 Heavy Duty Integrated Rampgate w/Gas Shock Assist |
| RAMPS | 4 Slide-In Ramp Package |
| RAMPS | 4 Tall Bi-Fold Rear Rampgate w/ Coil Spring Assist |
| RAMPS | 4 Tall Rear Rampgate w/Coil Spring Assist |
| RAMPS | 5 Stand Up Ramps |
| RAMPS | 5 Tall Rear Rampgate w/Coil Spring Assist |
| TIRE/WHEEL | Spare Tire (ST205/75R-15 LR-C) |
| TIRE/WHEEL | Spare Tire Mount (Side) |
| TIRE/WHEEL | Spare Tire Upgrade (ST225/75R-15 LR-D) |
| TIRE/WHEEL | Tire Upgrade (ST225/75R-15 LR-D) |
