45SS-83" x 16 Tandem Axle Pipe Top Utility Trailer
VIN: 029634
Call for Quote
(423) 277-6159New Tazewell, TN
The 45SS Tandem Axle Utility Trailer from Big Tex is an economy-style unit with a pipe top rail that is perfect for lawn and garden use. This affordable and capable trailer is also great for hauling 4-wheelers, side-by-sides and small tractors.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
45SS-83" x 16 Tandem Axle Pipe Top Utility Trailer
The 45SS Tandem Axle Utility Trailer from Big Tex is an economy-style unit with a pipe top rail that is perfect for lawn and garden use. This affordable and capable trailer is also great for hauling 4-wheelers, side-by-sides and small tractors.
- Axle Config:
- Tandem
- Max Payload:
- 3120 lbs.
- External Width:
- 77"
- External Length:
- 16'
- Weight:
- 1370
- Hitch Type:
- Bumper Pull
- Category:
- Utility Trailers
- Year:
- 2018
- Condition:
- New
- Material:
- Steel
- Open/Enclosed:
- Open
- Rear Type:
- Ramp
- Warranty:
- Factory Warranty Included
- Color:
- Black
- GVWR:
- 4490
- Capacity:
- 3120
Features/Specifications
Features
| Axle | (2) 3,500# EZ Lube w/ (1) Elec. Brake |
|---|---|
| Jack | 2,000# Top Wind (Bolted On) |
| Tire | ST205/75R-15 Load Range C |
| Floor | 2" Treated Pine or Douglas Fir* |
| Frame | 3" x 2" x 3/16" Angle |
| Wheel | 15" x 5"; Black Spoke 5 on 5 Bolt Pattern |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
| Lights | D.O.T. Stop, Tail, Turn & Clearance |
| Tongue | 4" Channel |
| Coupler | 2" A-Frame |
| Fenders | 9" x 72" Rolled Formed w/ Back |
| G.V.W.R. | 4,490# |
|---|---|
| Top Rail | 2-3/8" Pipe Top Rail |
| Uprights | 15" Tall, 2" x 2" x 1/8" Angle |
| Elec. Plug | 7-Way RV |
| Hitch Type | Bumper Pull |
| Suspension | Multi-Leaf Spring w/ Equalizer |
| Crossmembers | 3" x 2" x 3/16" Angle |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional, Smooth Finish |
| Safety Chains | 1/4" Grd. 30 w/ Safety Latch Hook (2 ea) |
| G.A.W.R. (Ea. Axle) | 3,500# |
Specifications
Big Tex 45SS Economy Tandem Axle Pipe Top Trailer
| Model | Description |
|---|---|
| 45SS-16 | 77" x 16' Economy Tandem Axle Pipe Top Utility Trailer |

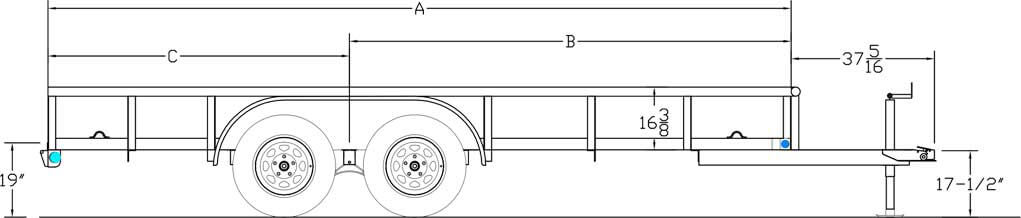

Dimensions
| Length | A | B | C |
|---|---|---|---|
| 16' | 193-1/2" | 115" | 78-1/2" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 16' | 1,370# | 3,120# | N/A |
Standard/Optional Equipment
Standard Equipment
- (4) Tie Down Loops Inside Bed
- EZ Lube Hubs
- Dexter Brand Axles
- Nev-R-Adjust Electric Brakes
- Cambered Axles
- 2-3/8" Pipe Top Rail
- Grommet Mount Sealed Lighting
- Protected Wiring
- Removable Sand Foot on Jack
- Complete Break-A-Way System w/ Charger
- Radial Tires
Optional Equipment
| Category | Description |
|---|---|
| BRAKES | Electric Brakes on 2nd Axle |
| BRAKES | No Brakes (Delete Break-A-Way System as Well) |
| RAMPS | 4 Slide-In Angle Ramps |
| RAMPS | 4 Tall Rear Rampgate |
| TIRE/WHEEL | Spare Tire (ST205/75R-15 LR-C) |
| TIRE/WHEEL | Spare Tire Mount (Side) |
